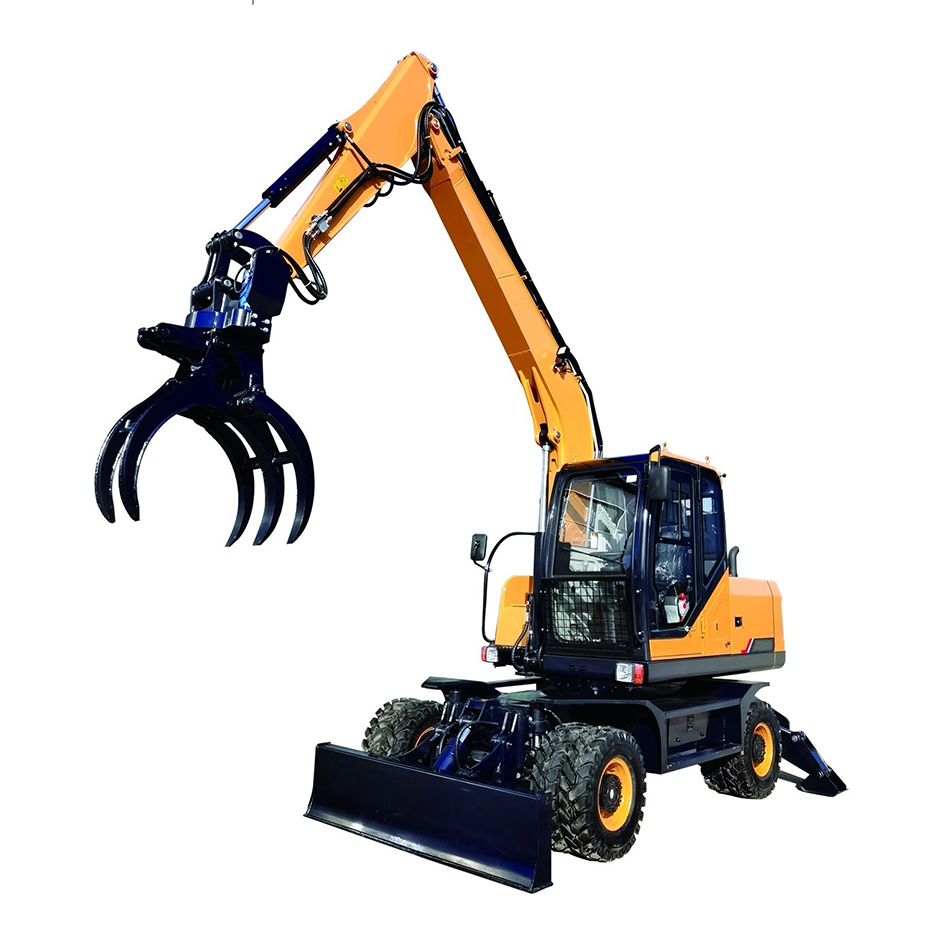

Wheel Grab loader H9088 log loader sugarcane loader grapple loader

Brand Name : HORNQUIP

Model Number : H9088

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 units per month

Delivery Time : 15 working days

Packaging Details : nude

Condition : NEW

Type : wheel excavator

Operating Weight : 8000 kg

Color : customizable

Engine brand : YUCHAI, XINCHAI, YANMAR or customization

OEM/ODM : acceptable

Contact Now

HORNQUIP excavators feature reliability, durability, high efficiency, and easy maintenance. HONRQUIP excavators are equipped with two kinds of undercarriage, crawler and wheeled, meeting different demands in various job sites. Small-sized dimensions create huge productivity.

Wheel excavators are general-purpose excavators. The main difference is that instead of running on tracks, they run on wheels. The advantage of a wheeled excavator is that it can be driven from one job site to another even on a road, while crawler excavators running on tracks are usually carried on a trailer for long-distance travel. This way is much more convenient, and it saves more time and cost for the company.

Crawler excavators also known as general-purpose excavators, they have a bucket, boom, and arm to the front of the machine. This kind comes in a variety of sizes. It’s an all-around excavator which means it can be used to dig sites, demolish structures and surfaces, carry out trenching, and lift heavy objects.

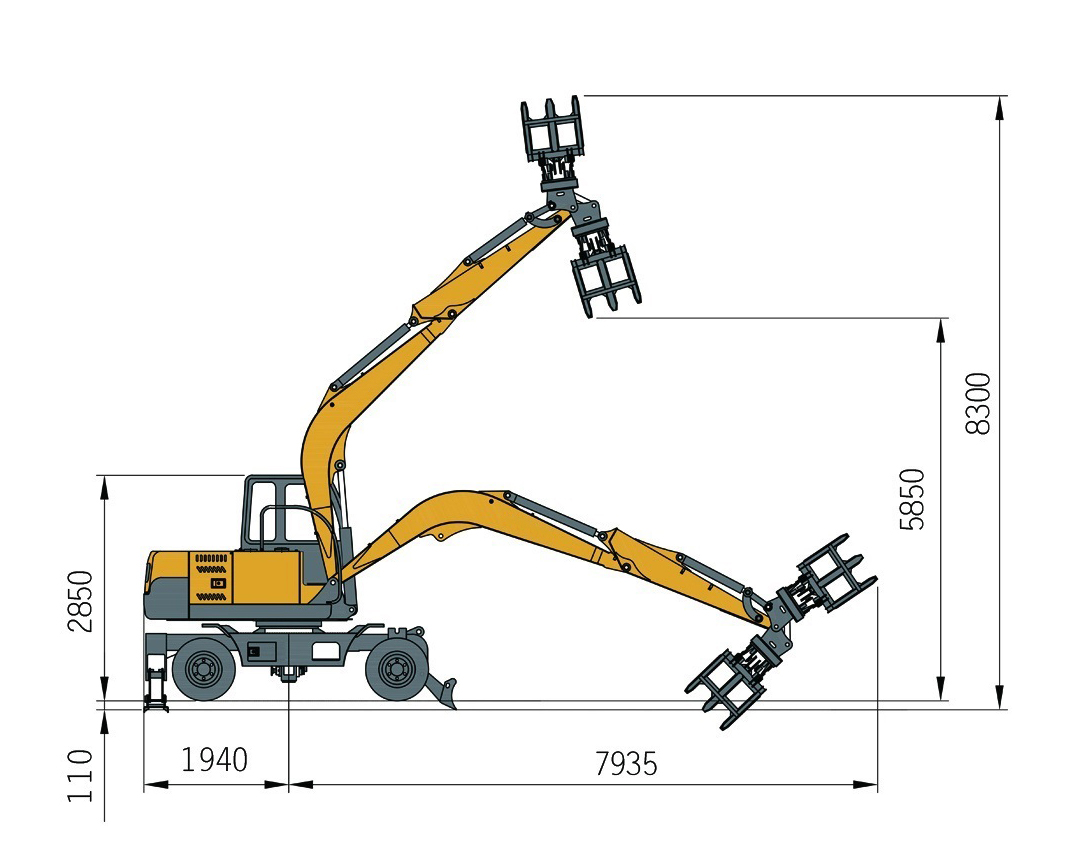

Specification:




Productwheel grab loaderSystem pressure24Mpa

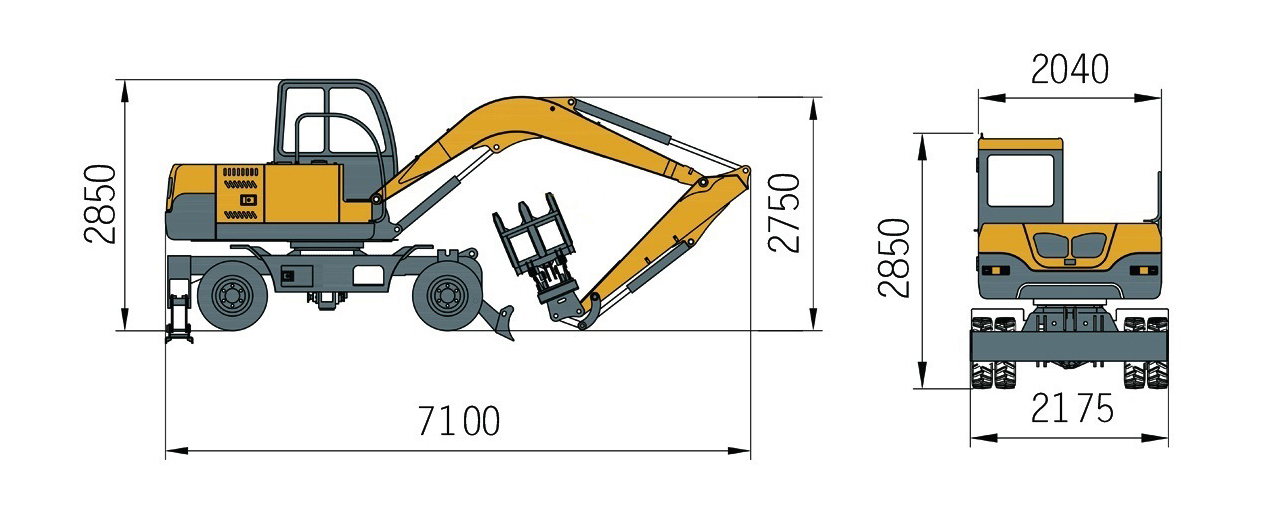

ModelH9088Dimension Length*Width*Height7100X2175X2850mm
operating weight8000KGAxle base2400mm
Swing speed0-11rpmMin. ground clearance235mm
Travelling speed30km/hTail Swing Radius1940mm
Gradeablity20°Boom length4100mm
Engine brandYUCHAIArm length2200mm
Power/revolution speed62.5/2200KW/rpmMax. grab height8300mm
Fuel typedieselMax. discharge height5850mm
Fuel tank capacity100LMax. loading weight800mm
Hydraulic oil tank capacity90LMax. grab radius7935mm
Tire8.25-16Max. opening size of log grapple1300mm
Pilot hydraulic pressure3.5-4MpaMin. opening size of log grapple120mm


Features:




  • The wheel excavator is an economic excavator, which matched YUCHAI, XINCHAI or YANMAR engine with strong power and low oil consumption and environment protection.
  • Fitted famous brand main pump and valves and driving motor and slewing motor.
  • Adopted imported driving motor and swing motor.
  • Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency.
  • The professional structural parts and working mechanism, ensure the machine has reliability and durability.
  • The breaking pipeline equipped improve the working performance.

  • Installed luxury full seal cabin with A/C and LCD display etc.

  • The humanized design, ensure the machine can comfortable operation and convenient maintenance.


Advantages:




  • Enhanced the design of the arm, boom, and bucket to increase the overall lifespan of the machine.

  • Different attachments can be replaced for various operations, achieving a wider range of practical applications.

  • 360 rotation, excellent traction, higher stability, and stronger durability.

  • Closed cab, large space high protection level suspended seat.


Customizations:




  • COLOR: If the regular color can not meet your needs, we can customize the color for you.
  • ENGINE: You can choose a variety of engines, you can choose Euro 3, Euro 5 and EPA engine.
  • LOGO: We can design and customize product of your own brand.
  • OTHERS: We can produce what you want according to your requirements.


Applications:



6-15 tons excavators can be used on more standard projects like building construction and landscaping while still providing the advantage of increased maneuverability thanks to their smaller size.
6-15 tons excavators are very versatile machines. They are capable of performing services such as dam building, batter work, detailed large scale excavation, site cuts demolition, grading, lifting and land clearing.
18-23 tons excavators are often used on commercial construction sites, mining and large demolition projects such as shopping malls and large-scale buildings.
60 tons crawler excavator H8600 is mainly used for mining construction. It features High-efficiency / Long-period / Reliable-quality and so on.

Optional Attachments:




• Bucket• Hydraulic Thumb• Breaker• Root rake• Grapple
• Crusher• Multiprocessor• Auger• Shear• Compactor


Wheel Grab loader H9088 log loader sugarcane loader grapple loader

Company Profile:



Qingdao Hornquip Machinery Co., Ltd. Was established in 2017, is a company specializing manufacture and sale of construction machine and logistics handling equipment.

What we can do for you?



1. Optional attachment: Breaker Hammer, Augers, Rakes, Quick Hitch, Rippers, Log Grabbers, Buckets of all sizes and more.
2. Color and style can be customizable.
3. Different types of engines can be matched according to your different needs.
4. Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.

Details:



Wheel Grab loader H9088 log loader sugarcane loader grapple loader
Wheel Grab loader H9088 log loader sugarcane loader grapple loader

 Wheel Grab loader H9088 log loader sugarcane loader grapple loader
